Documentation

1. Reasons to Choose Us
  • Low entry cost, start fast. Get going for $199 with your own boom barrier (or order one from any seller).
    Compare to 10s of thousands $ cost of automated parking payment machines.
  • Only 1% transaction cost on Venmo, PayPal & CashApp.
    On small transactions, 3% + 30¢ fee from Visa or ApplePay becomes 6% on $10 payment ($0.60) and 9% on $5 payment ($0.45).We let you receive payments directly for only 1%.
  • For small businesses – start with your existing payment account with a few clicks.
  • No Internet required, customers pay on their phone.
  • Payments are processed instantly to your account, live analytics.
  • All known payment methods: ApplePay, GooglePay, Visa, PayPal, Venmo, Alipay, WeChat, Klarna...
  • Powerful settings: Flat Fee/Daily/Hourly, Weekend & Holiday Pricing, Access Lists by Phone Number
  • Simple installation.
2. Usage Scenarios
  • Automate manual payment collection or add another entry point.
    $15/hr attendant has to collect $1500/hr or $25/min to match our fees.
  • Parallel connection to existing parking management system.
    Just add a scanner, connect to the same boom barrier, print QR code banner and start accepting payments. No need to change existing setup.
  • Event parking with battery powered portable boom barrier.
  • Monetize your idle property:
    • Vacant land - commercial/recreational access
    • Garages, Hangars, Storage units
3. Getting Started
Before setting up your own, check out our pre-configured Demo Account:
3.1 Demo Account
  1. Logout (bottom left)
  2. Click "Parkings" menu item
  3. A Sign-In page will open, click "Sign in with password" link
  4. Enter Username: test, Password: test

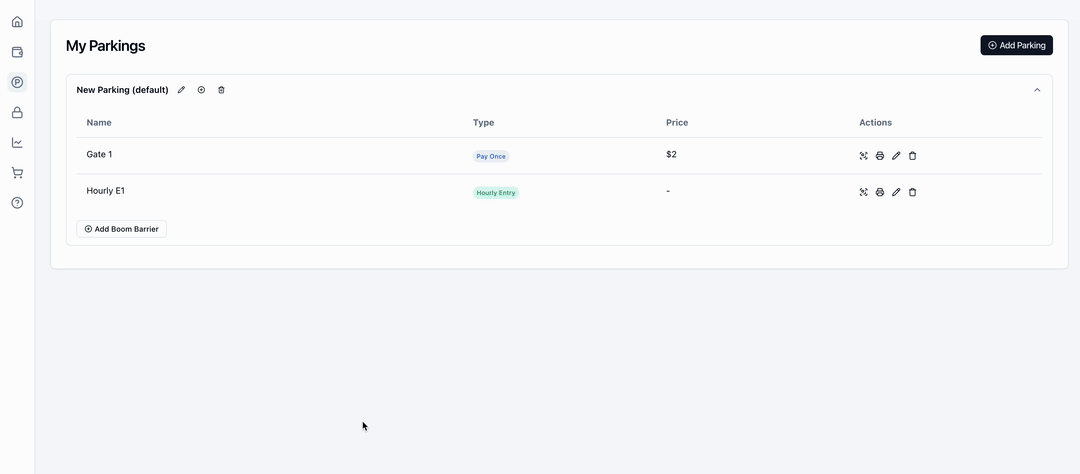

  5. Open a Pay-on-Entry device by clicking Edit button
  6. Scan the payment QR code, which will start the payment flow
3.2 Payment Accounts
Direct Payments
Connect your existing payment account in a few clicks, no need to set up a new one.
We support PayPal, Venmo, CashApp.
  1. Click "Payment Accounts" menu
  2. Click "Add Direct Payment Account" button
  3. Financial Email - email getting transaction receipts
  4. Personal QR Code - a code to receive payments
    • Open PayPal app > Send/Request > QR Code (Top Right) > Your code > Download
      Go back & Upload Image
    • Open Venmo app > Qr Code (Top Right) > Venmo Me > Share > Copy Link
      Go back & Paste Link
    • Open Cash App > Qr Code (Top Right) > My Code > Share (Top Right) > Copy $Cashtag link
      Go back & Paste Link
  5. Configure mail forwarding for payment notifications
    6. Gmail
    • Settings (Top Right) > See all settings > Forwarding and POP/IMAP > Add a Forwarding Address
    • Add email
    • Filters and Blocked Addresses > Create a new filter
    • From: venmo@venmo.com, service@paypal.com, cash@square.com (add one at a time)
    • Forward it to email

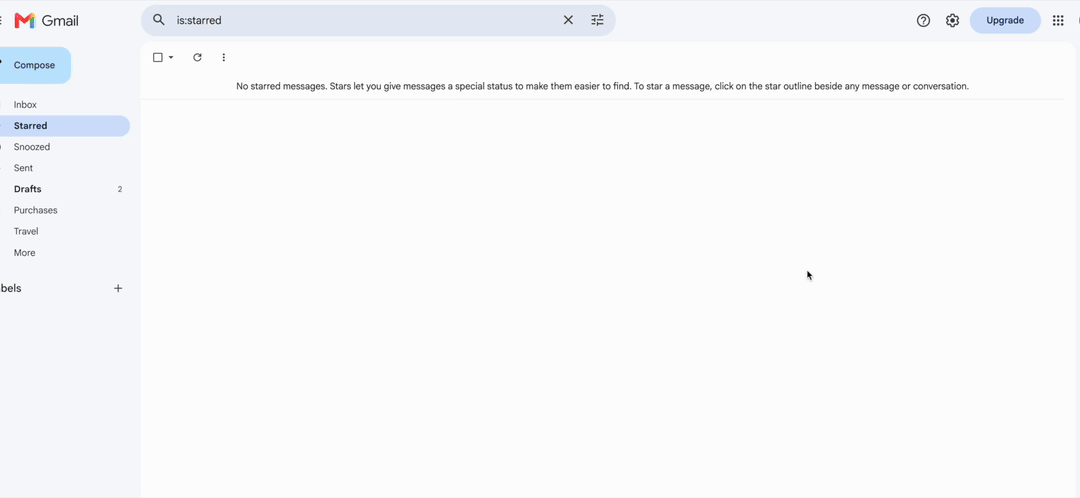

    Gmail Forwarding Steps
    Apple
    • Gear Icon (Top Left) > Settings > Rules > Plus Icon (Top Right)
    • From: venmo@venmo.com, service@paypal.com, cash@square.com (add one at a time)
    • Forward to email

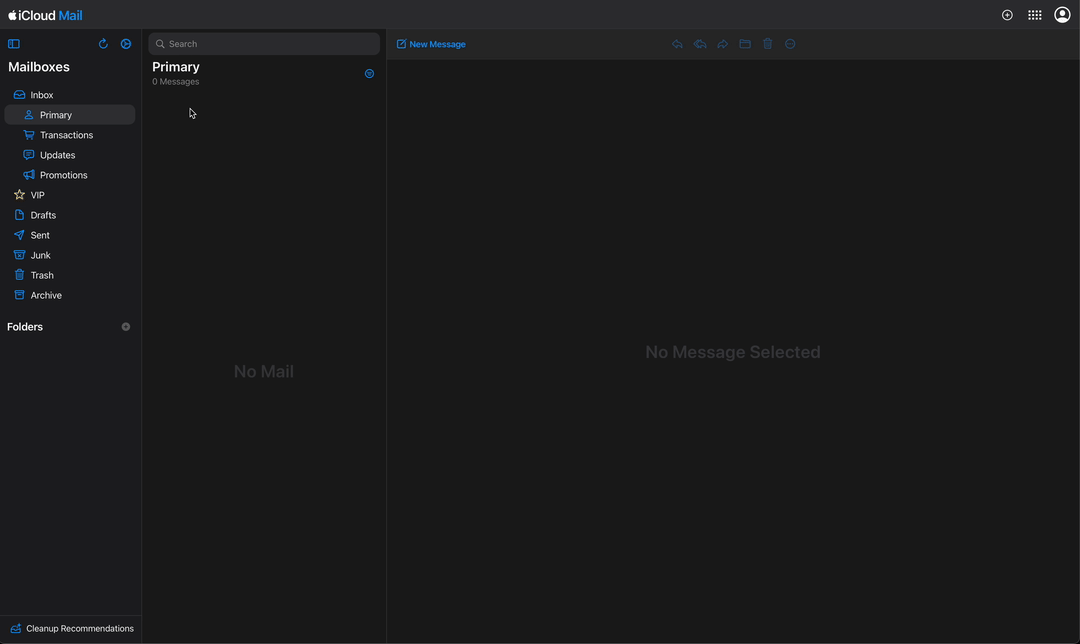

    Apple Mail Forwarding Steps

Stripe
  1. Create Stripe account to receive ApplePay, GooglePay and Visa payments.
  2. Then click "Link Stripe Account".

3.3 Device Configuration

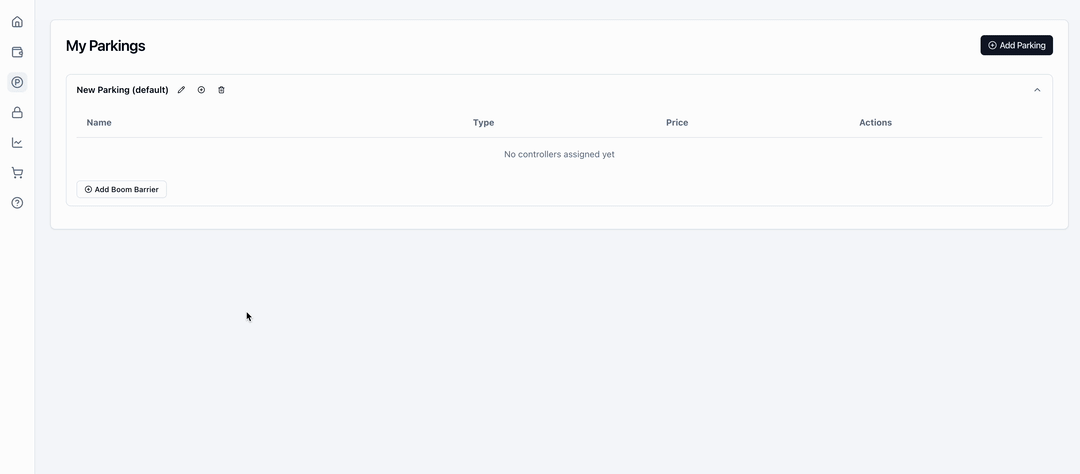

Pay on Entry
  • Customer will be charged flat rate upon entry.
  • Allowed phone numbers - restricts access to specific devices.
  • A single pay-on-entry device may have multiple configurations and their own pricing rules (e.g. employees and public).

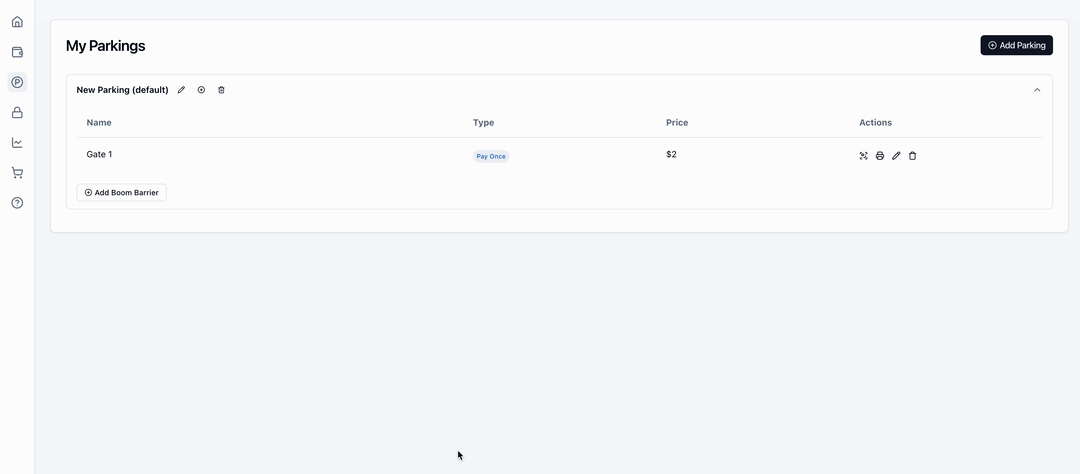

Hourly Entry
  • Customer will use their phone to obtain a pass without payment.
  • Grace period - allows free exit within a specified time after entry.
Hourly Exit
  • Customer will be charged hourly rate upon exit.
  • Phone number is used to identify the customer and time of entry.
  • Allowed phone numbers - restricts access to specific devices.
  • A single exit device may have multiple configurations and their own pricing rules (e.g. employees and public).
Cost

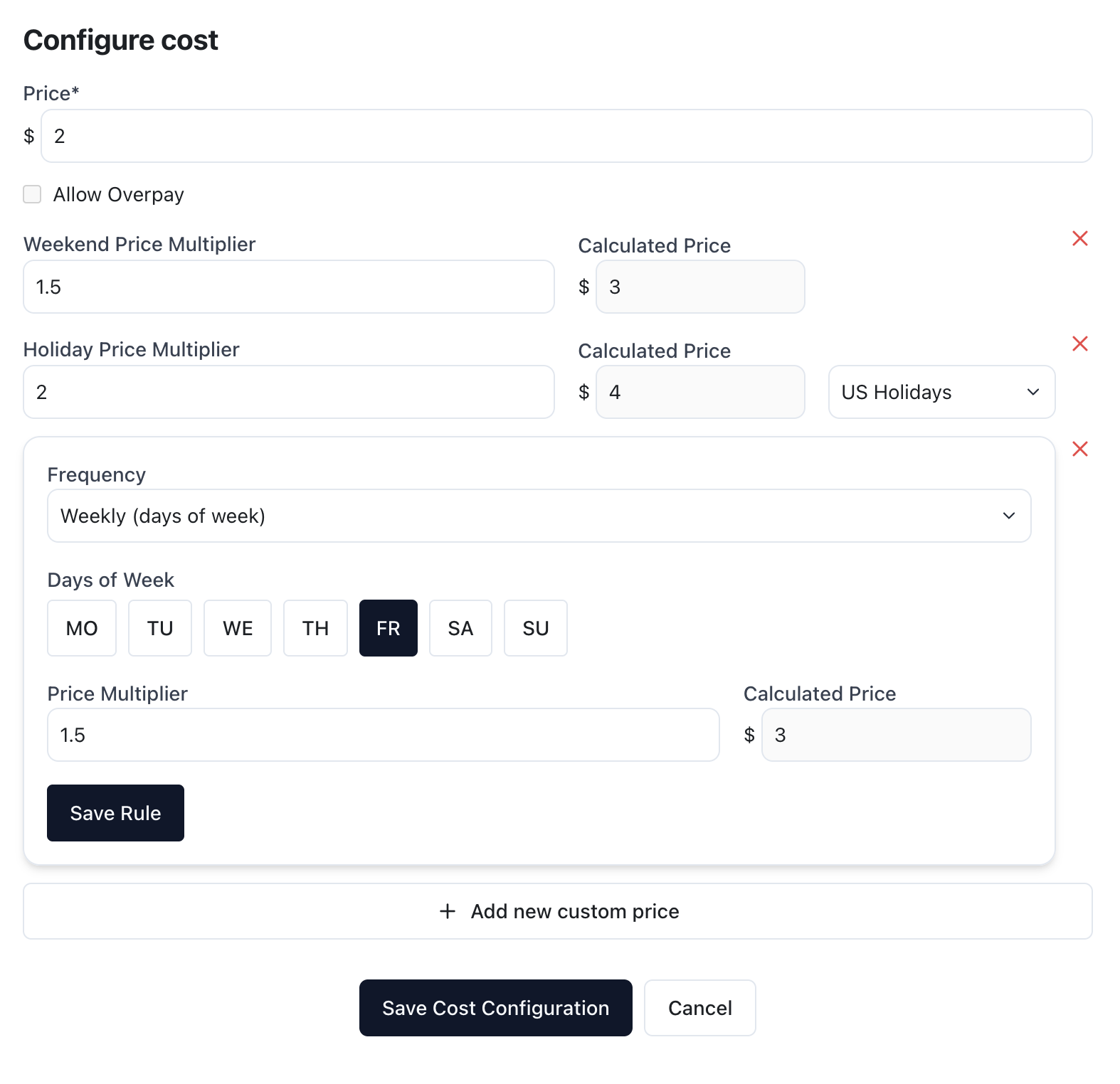

  • In addition to basic price or price per hour, system supports Weekend, Holiday and Custom pricing rules.
    • The below example sets:
    • $2 on regular Weekdays
    • $3 on Weekends including Friday
    • $4 on US holidays

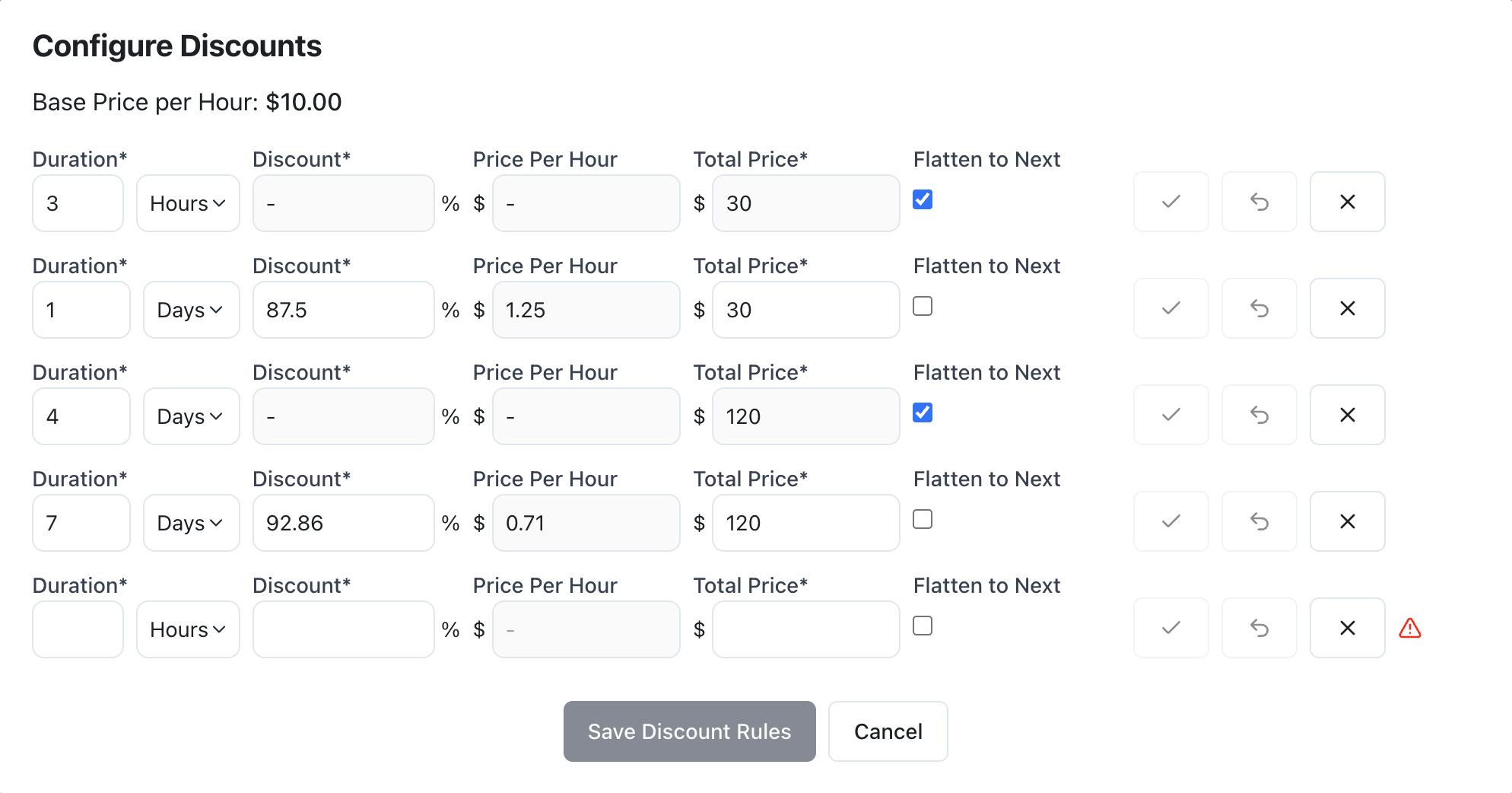

  • Hourly Pricing allows for Discount Rules e.g. "flat rate after 3hrs".
    • The below example sets:
    • 0-3 hours - normal hourly rate
    • 3-24 hours flat rate - $30
    • 1-4 days - $30/day
    • 4-7 days flat rate - $120

3.4 Automatic Parking Boom Barrier – Connection

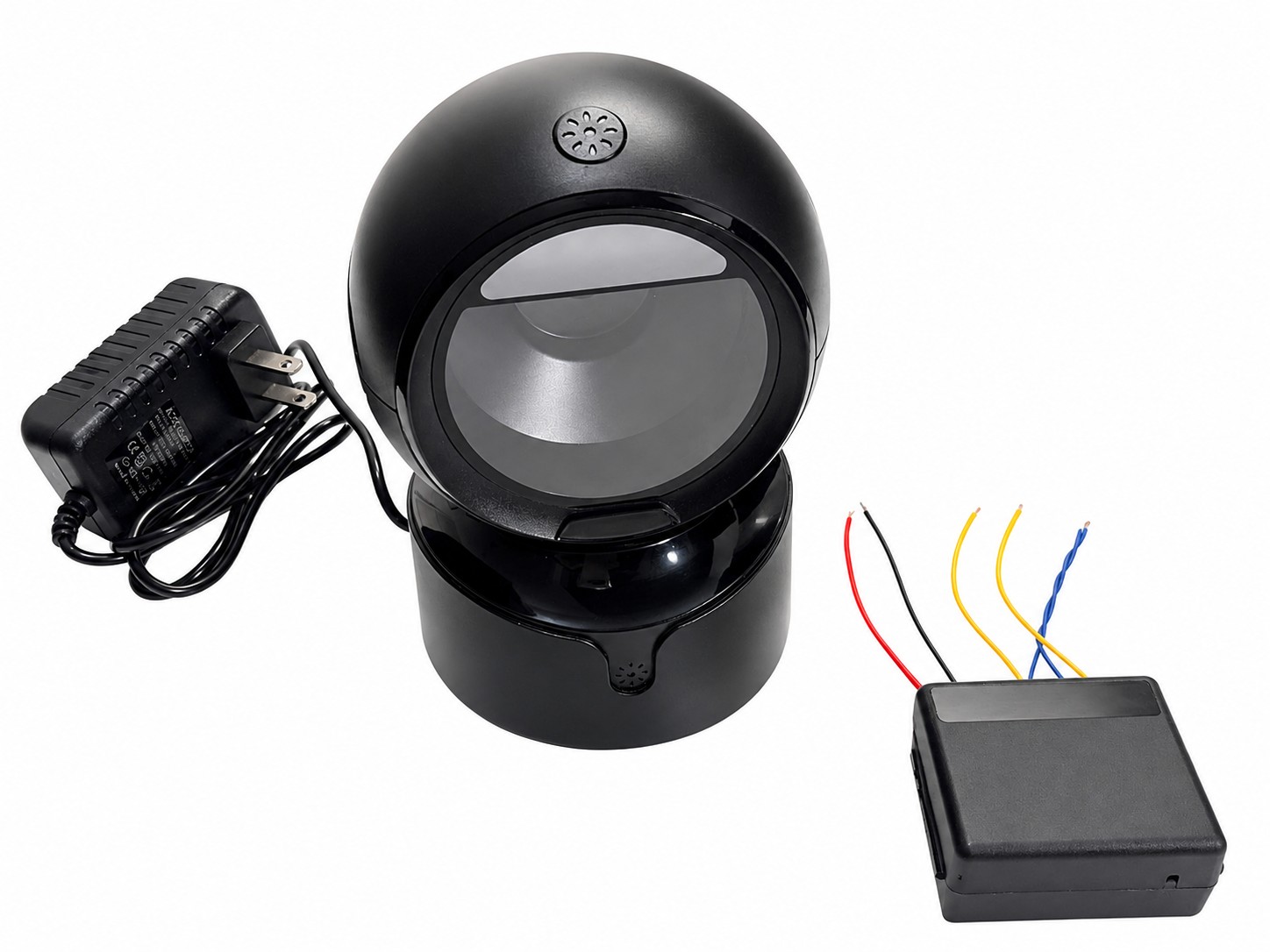

Image of a product, works with any boom barrier (ordered independently).
  • Can be powered 5V charger / power bank / solar.
  • Relay module to be connected to the boom barrier.
  • Can be used in parallel with other parking systems.

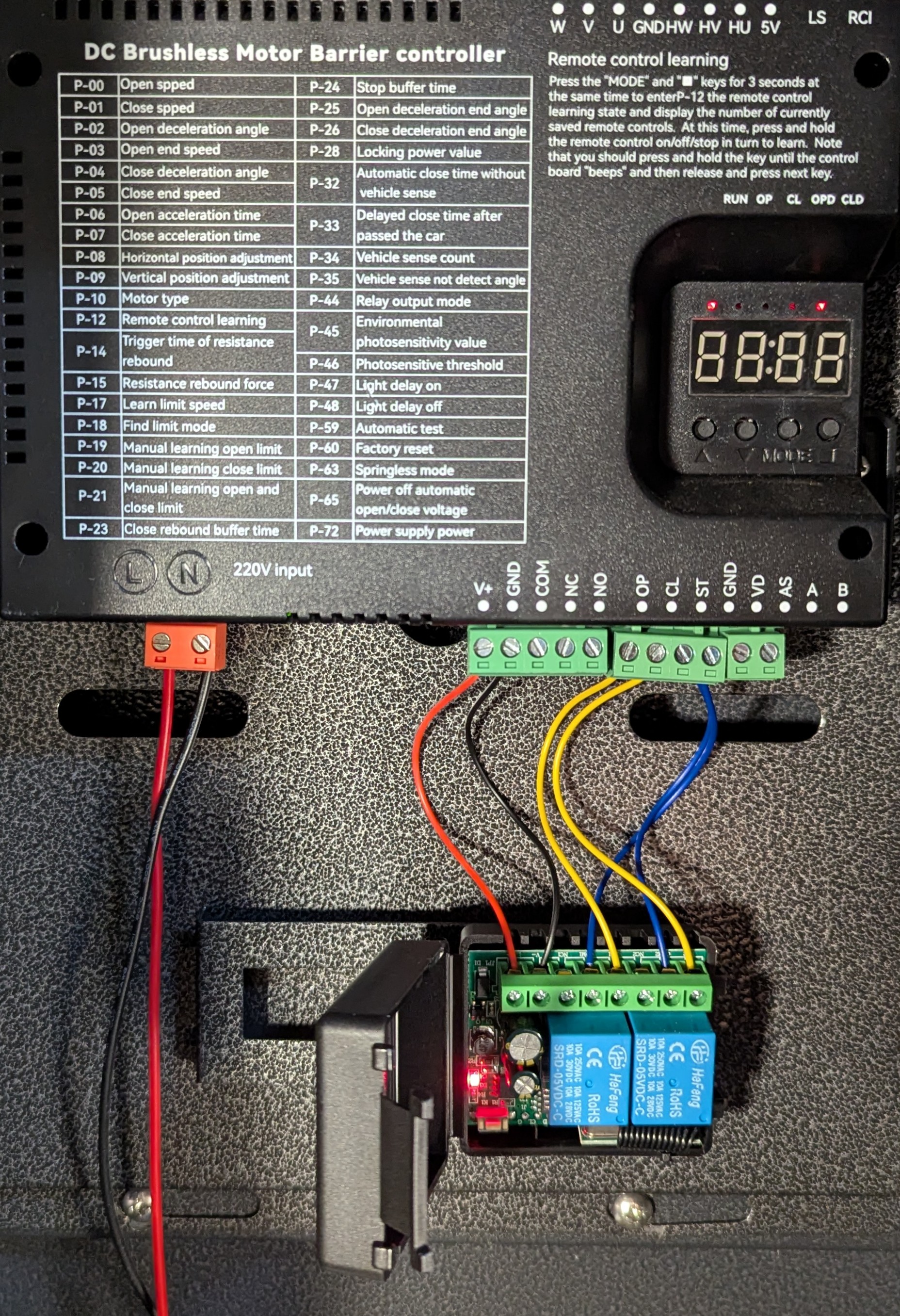

The diagram below illustrates the wiring connections between the relay and the boom barrier controller.
  • Red/Black - Power (6-30V).
  • Yellow - Open/Close (NO).
  • Blue - Signal Ground.
